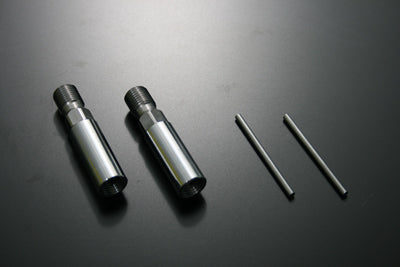

Piston Rod Top Extension Kit M10

This made-to-order gadget extends the piston rod top to shift the position of EDFC motor installation to allow sufficient space. This also works with Motor Extension Kit. It will be produced to the desired length (not less than 21mm extension or 26mm overall) upon request. When ordering, the part number of the damper kit and the desired length must be provided.

[ CAUTION!! ]

(1)Check if piston rod top is threaded all the way to the end. If the end has non-threaded part, Piston Rod Top Extension can not be attached. Please refer to the diagrams below.

(2)Measure the protruding part of piston rod, the length between the edge of nut to the tip of rod, as shown below. This length needs to be more than 11mm.

(3)The length of Piston Rod Top Extension must be 21mm or longer.

(4)NOT compatible with Shock Absorbers with S.L.C. (Side Layout Click).
